Shielded Instrument Cable 300/500V Braided Shield PVC Sheathed Computer Cable

Brand Name : Zhongdong

Model Number : DJYPVP-300/500V ZC-DJYPVP 300/500V

Certification : IEC,CE,ISO

Place of Origin : Hebei，China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C,T/T

Supply Ability : 100KM/Week

Delivery Time : 10Days

Packaging Details : wooden drums

Conductor : Copper

Insulation : PVC

Drain Wire : Tinned copper

Voltage Rating : 300V/500V

Outer Sheath Colour : Black,Blue

Temperature : Fixed -40°C to +80°C

Contact Now

Shielded Instrument Cable 300/500V Braided Shield PVC Sheathed Computer Cable


APPLICATION

The cable is suitable for electronic computers and automation instruments with high anti-interference requirements for rated voltage of 500V and below



CONSTRUCTION

Conductor: The first or second type of copper conductor

Insulation:Low density polyethylene (LLDPE)

Filler (optional): Filling rope

Separate shielding: Braided shielding (P)

Overall shield: Braided shielding (P)

Outer sheath:Polyvinyl chloride ST2 (PVC)


Shielded Instrument Cable 300/500V Braided Shield PVC Sheathed Computer Cable

Shielded Instrument Cable 300/500V Braided Shield PVC Sheathed Computer Cable

STANDARD

TICW/06-2009,GB/T 3956

CHARACTERISTIC

Voltage Rating Uo/U: 300/500V

Maximum system voltage (Um):600V

Temperature Rating

Maximum operating temperature of conductor:+70℃

Operating ambient temperature: -20℃~+45℃

Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)

Minimum Bending Radius

During installation: 12D

After installation: 10D

(D is the actual outer diameter of the cable


SPECIFICATION



No of Pair

No of Core

Section

Mm2

Insulation thickness

mm

Diameter of single metal wire used in shielding layer mm

Diameter of single metal wire used for winding in overall shielding of outer layer

mm

Outer sheath thickness

mm

Approx outer diameter of cable mm

Approximate cable weight

kg/km

2

2

0.5

0.5

0.15

0.15

1.1

12.5

164

3

2

0.5

0.5

0.15

0.15

1.2

13.5

205

4

2

0.5

0.5

0.15

0.2

1.2

14.8

263

5

2

0.5

0.5

0.15

0.2

1.2

15.9

310

6

2

0.5

0.5

0.15

0.2

1.3

17.5

367

7

2

0.5

0.5

0.15

0.2

1.3

17.5

392

8

2

0.5

0.5

0.15

0.2

1.3

19.4

457

9

2

0.5

0.5

0.15

0.2

1.3

20.8

514

10

2

0.5

0.5

0.15

0.2

1.4

22.0

567

11

2

0.5

0.5

0.15

0.2

1.4

22.0

593

12

2

0.5

0.5

0.15

0.2

1.4

22.7

634

13

2

0.5

0.5

0.15

0.2

1.4

23.7

685

14

2

0.5

0.5

0.15

0.2

1.4

23.7

711

15

2

0.5

0.5

0.15

0.25

1.4

25.1

793

16

2

0.5

0.5

0.15

0.25

1.4

25.1

819

17

2

0.5

0.5

0.15

0.25

1.5

26.7

889

18

2

0.5

0.5

0.15

0.25

1.5

26.7

915

19

2

0.5

0.5

0.15

0.25

1.5

26.7

936

20

2

0.5

0.5

0.15

0.25

1.5

28.0

1005

21

2

0.5

0.5

0.15

0.25

1.5

28.0

1032

22

2

0.5

0.5

0.15

0.25

1.5

29.5

1098

23

2

0.5

0.5

0.15

0.25

1.5

29.5

1124

24

2

0.5

0.5

0.15

0.25

1.6

31.1

1203

25

2

0.5

0.5

0.15

0.25

1.6

31.1

1229

26

2

0.5

0.5

0.15

0.25

1.6

31.1

1255

27

2

0.5

0.5

0.15

0.25

1.6

31.8

1301

28

2

0.5

0.5

0.15

0.25

1.6

32.9

1360

29

2

0.5

0.5

0.15

0.25

1.6

32.9

1386

30

2

0.5

0.5

0.15

0.25

1.6

32.9

1412

31

2

0.5

0.5

0.15

0.25

1.7

34.4

1491

32

2

0.5

0.5

0.15

0.25

1.7

34.4

1517

33

2

0.5

0.5

0.15

0.25

1.7

34.4

1543

34

2

0.5

0.5

0.15

0.3

1.7

35.8

1650

35

2

0.5

0.5

0.15

0.3

1.7

35.8

1676

36

2

0.5

0.5

0.15

0.3

1.7

35.8

1702

37

2

0.5

0.5

0.15

0.3

1.7

35.8

1715

38

2

0.5

0.5

0.15

0.3

1.7

37.2

1802

39

2

0.5

0.5

0.15

0.3

1.7

37.2

1829

40

2

0.5

0.5

0.15

0.3

1.7

37.2

1855

41

2

0.5

0.5

0.15

0.3

1.8

38.9

1948

42

2

0.5

0.5

0.15

0.3

1.8

38.9

1974

43

2

0.5

0.5

0.15

0.3

1.8

38.9

2000

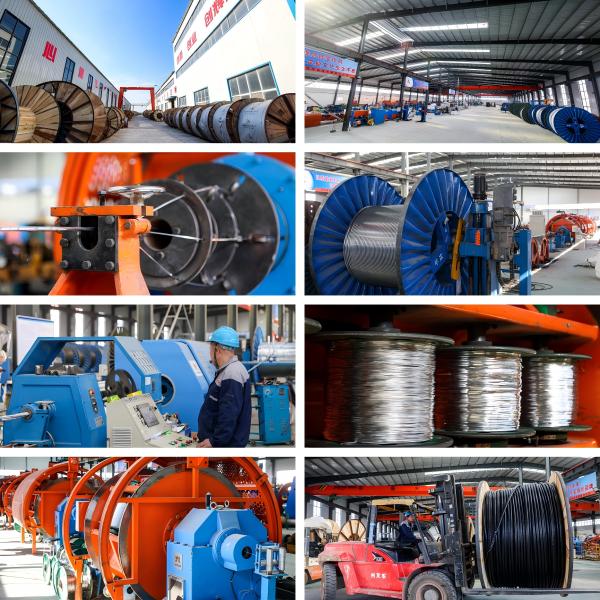

OUR PLANTS

Shielded Instrument Cable 300/500V Braided Shield PVC Sheathed Computer Cable


APPLICATION

Shielded Instrument Cable 300/500V Braided Shield PVC Sheathed Computer CableShielded Instrument Cable 300/500V Braided Shield PVC Sheathed Computer Cable


FAQ

Q1: Are you a factory?
A1:We are a manufacturer with more than 20 years of experience.
Q2: How about MOQ ?
A2: We adopt flexible MOQ policy.

Q3: How long is your delivery time?
A3: Generally it is 3-7 days if wires are in stock. if wires are not in stock, it is according to quantity.
Q4: Can I see the sample first before I place the real order ?
A4: Of course. We can offer samples for testing .
Q5 : Can I get a discount?
A5:It depends on your quantity. Please contact us.
Q6: Do you accept OEM/ODM?
A6:We support OEM/ODM service
